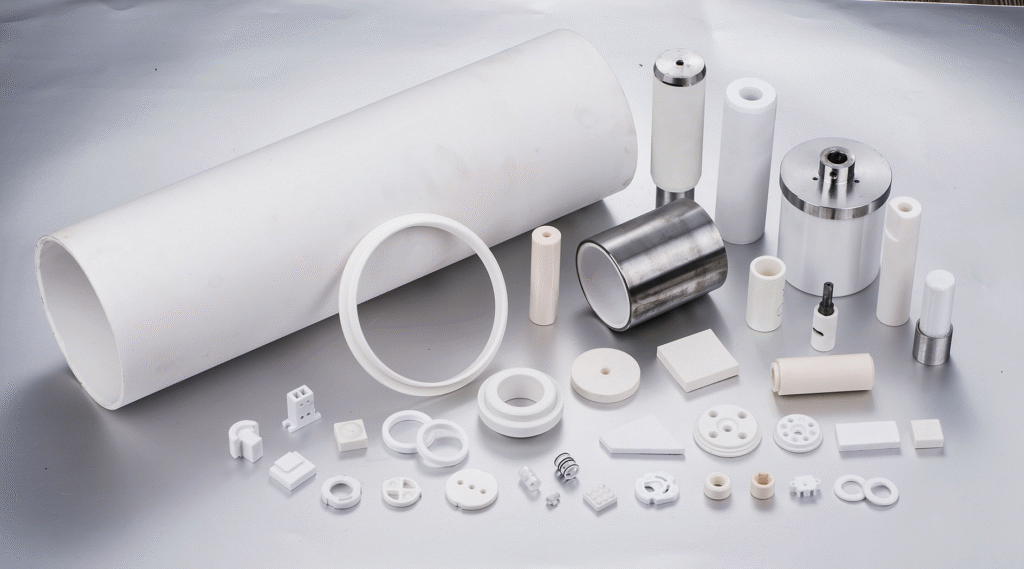

The application advantages of alumina stem from its unique physical, chemical, and mechanical properties, which also set it apart from other ceramic materials.
1. Ultra-High Hardness & Wear Resistance: Top Choice for Industrial Wear Parts
Alumina has a Mohs hardness of 9, second only to diamond (Mohs 10). Its compressive strength at room temperature ranges from 2000 to 3000 MPa, with an extremely low wear rate.

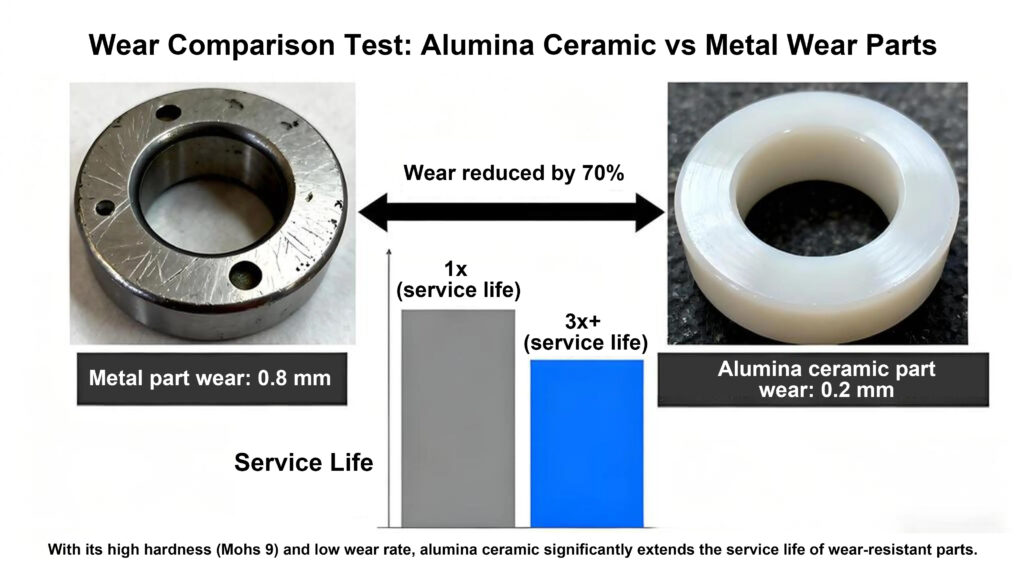

In a wear resistant component project for a machinery enterprise, 3D printed alumina ceramic bearing rings reduced wear by 70% and extended service life by more than three times compared with metal parts.
This property enables alumina to withstand high friction environments without frequent replacement, greatly reducing maintenance costs in industrial production.
2. Excellent High-Temperature Resistance & Thermal Insulation: Guardian in Extreme Temperatures
Alumina has a melting point of 2054 °C and remains structurally stable up to 1600 °C. With low thermal conductivity (approximately 30 W/(m·K) at room temperature), it combines outstanding heat resistance and thermal insulation.

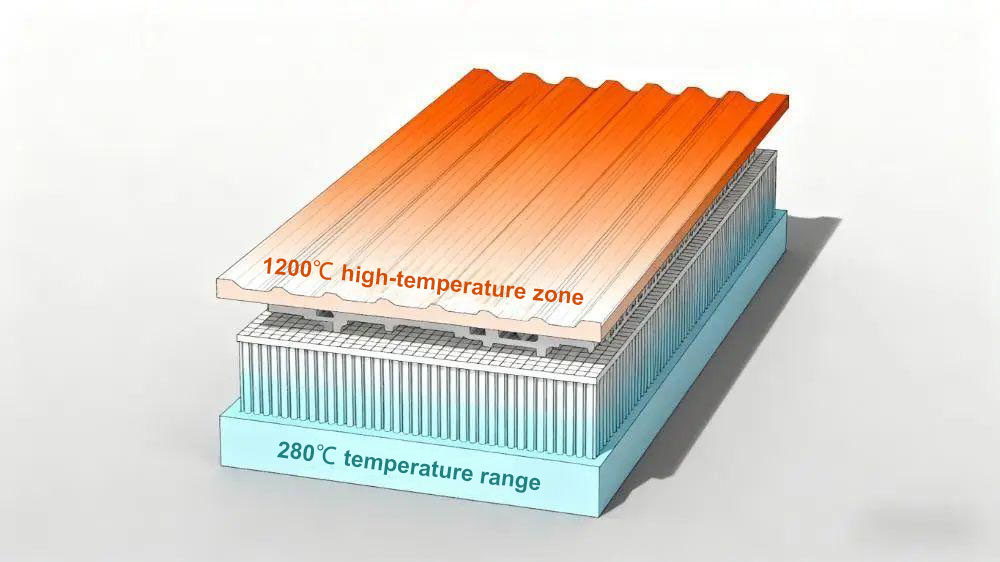

In high temperature aerospace tests, alumina insulation tiles 3D printed via SLA ceramic technology kept the backside temperature below 300 °C under 1200 °C heating, meeting spacecraft thermal protection requirements.
Additionally, alumina has a low thermal expansion coefficient (approximately 8 × 10⁻⁶ /°C), which helps it resist cracking under rapid temperature changes—its thermal shock resistance outperforms most metals.
3. Strong Chemical Stability: Resistant to Corrosive Environments
Alumina is highly resistant to acids, alkalis, salts, and other corrosive substances. It is nearly inert to most chemicals except hydrofluoric acid and concentrated phosphoric acid.
In an acid–alkali solution conveying project for a chemical enterprise, 3D printed alumina ceramic pipelines replaced stainless steel and completely solved corrosion and leakage issues. Maintenance intervals were extended from three months to two years.
Non toxic and emission free, alumina is also suitable for food, pharmaceutical, and other high safety applications.
4. Excellent Electrical Insulation: Insulation Barrier in Electronics
Alumina has a volume resistivity of 10¹⁴–10¹⁶ Ω·cm at room temperature and retains excellent insulation even at 1000 °C, making it an ideal electrical insulator.

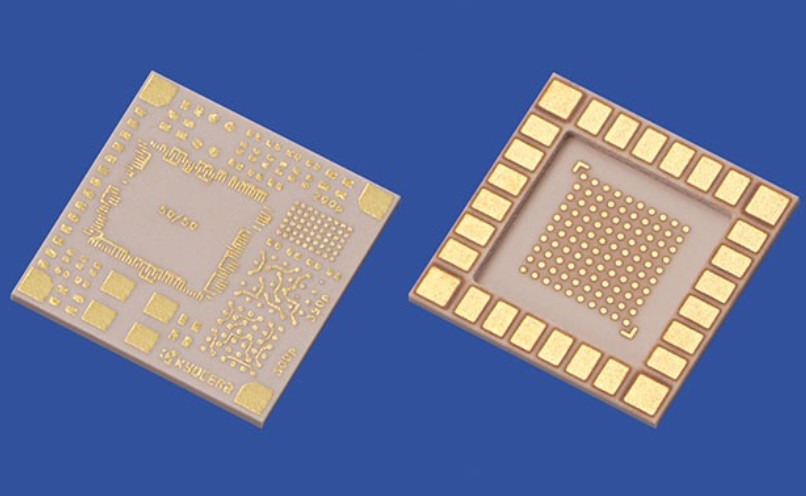

In a chip heat sink substrate project for an electronics firm, 3D printed alumina substrates enabled complex heat dissipation channels while effectively isolating circuits and preventing leakage risks.
